With its advantages of zero leakage and resistance to extreme working conditions, ferrofluid seals (magnetic fluid seals) can be applied in aerospace, defense and military industries, such as aviation optoelectronic pods, radar turntable seals, and spent fuel processing in the nuclear industry. They are suitable for harsh environments such as high vacuum, strong corrosion, and alternating high and low temperatures, ensuring long-term stable operation of equipment.

Sealing Challenges

The sealing challenges of aerospace optoelectronic pods primarily lie in the dual constraints of the complex high-altitude environment and high-precision servo systems. Reliable sealing of the optical window and rotating mechanism must be ensured simultaneously under conditions of high-altitude low temperature and low pressure, strong vibration and impact, humid heat and salt spray, and rain and dust corrosion, preventing condensation and fogging from affecting imaging accuracy. It must achieve dynamic sealing for 360° continuous rotation while strictly controlling sealing resistance to avoid interfering with the stability and positioning accuracy of the servo system. Long-term service also requires resistance to wear and aging, and prevention of leakage and foreign object intrusion. This places extremely high demands on the environmental adaptability, frictional characteristics, and service life of the sealing structure.

The main challenge in sealing radar turntables and aviation optoelectronic pods lies in meeting the dynamic sealing requirements of 360°continuous rotation and high and low speed start-stop, while maintaining high reliability in harsh environments such as high altitude, low temperature, low pressure, strong vibration and impact, and humid heat and salt spray. At the same time, it is also necessary to balance airtightness and low frictional resistance to avoid excessive sealing resistance affecting servo accuracy. Furthermore, it is essential to ensure that there is no wear leakage or dust accumulation during long-term service. This places extremely high demands on the stability, environmental adaptability, and lifespan of the sealing structure.

Solutions

Ferrofluid seals (magnetic fluid seals) are used in radar turntables, perfectly suited to their 360°continuous rotation and high-precision pointing requirements. Relying on a controllable liquid sealing ring formed by the magnetic fluid under a magnetic field, zero-leakage sealing is achieved between moving and stationary components, without mechanical contact wear, low starting torque, and extremely low frictional resistance, thus without affecting the rotational stability and positioning accuracy of the radar servo system. Simultaneously, it can withstand high and low temperatures, vibration, shock, and salt spray/humid heat conditions in airborne/shipborne environments, maintaining long-term stable airtightness and dust and water resistance. This effectively protects the turntable's internal bearings, transmissions, and electronic components, significantly improving the reliability and service life of radar equipment in complex and harsh environments.

Ferrofluid seals (magnetic fluid seals) are also used in aerospace optoelectronic pods, achieving dynamic zero-leakage sealing between the pod's rotating frame and the optical housing. Relying on a non-contact liquid sealing structure, rotational resistance is greatly reduced, without interfering with the pod's high-precision servo and image stabilization control, avoiding the impact of traditional sealing friction jamming on imaging accuracy. It can effectively isolate high-altitude low temperature, low pressure, salt spray, water vapor and sand and dust, prevent condensation and fogging of internal optical components and moisture corrosion of electronic components, and has excellent vibration and shock resistance and long life maintenance-free characteristics, providing a stable and reliable internal working environment for photoelectric detection, tracking and aiming systems.

Customer Application Cases

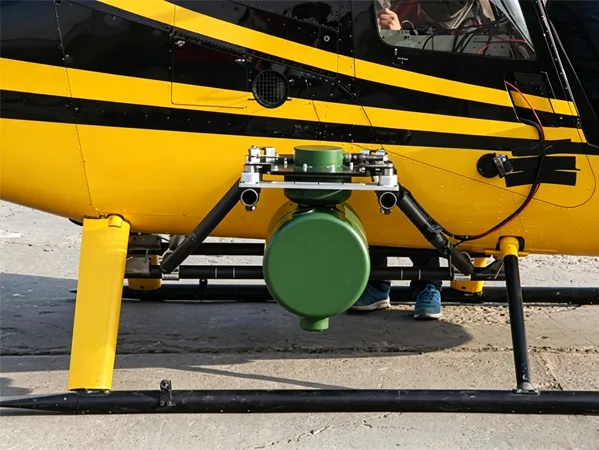

Airborne Electro-Optical Pod
