2T 8T Inner & Outer Ring Bushing Set for Vertical Multistage Pumps

Model: MH2/MH3

Material: TiCN-based cermets

Main components: TiCN, WC, TaNbC, Mo, Ni, CrC, Co

Manufacturing process: Powder metallurgy

Application: for CDL/CDLF/CR pump parts, WC bushing replacement


Get A Quote
Category: Ti-Based Cermet Product
Products
Performance Comparison Features Drawing Application Scenarios

  • Performance Comparison of 2T 8T Inner & Outer Ring Bushing Set for Vertical Multistage Pumps

    Parameter

    MH2


    WC

    SIC

    Density (g/cm³)

    6.3-6.5

    14

    3.75

    Hardness (HRA)

    91.16

    86-94

    86-95

    Bending Strength(N/mm²)

    ＞1550

    ＞1800

    380-460

    Fracture Toughness(MPa·m¹/²)

    8.5-10

    9.5-11.5

    1.5-2



    MH3

    Density (g/cm³)

    Hardness (HV)

    Hardness (HRA)

    Hardness (HRC)

    Fracture Toughness (MPa·m¹/²)

    2T Inner Ring

    6.376

    1458.90

    90.1

    76.2

    8.837

    2T Outer Ring

    6.384

    1458.70

    90.1

    76.2

    8.829

    8T Inner Ring

    6.376

    1454.84

    90.1

    76.2

    8.833

    8T Outer Ring

    6.370

    1454.70

    90.1

    76.2

    8.825



  • Features of 2T 8T Inner & Outer Ring Bushing Set for Vertical Multistage Pumps

    (1) Hardness and Wear Resistance

    The MH series new materials exhibit the characteristic that the lower the density, the higher the hardness. This leads to a decrease in the impact resistance coefficient as the hardness increases. The wear resistance coefficient is directly proportional to the hardness.



    (2) Corrosion Resistance

    Due to the formulation, the new materials have stable chemical properties. They can be used in acidic and alkaline environments, but environments with strong acids (such as concentrated sulfuric acid with a content of over 70%) and high temperatures should be avoided. Acid and alkali resistance tests show that the chemical properties in acidic environments are superior to WC.



    (3) Wear Test

    In experiments with added mud, abrasives, and iron filings, the wear loss of the new material MH2 was 0.02 mm, WC was 0.02-0.04 mm, and SiC was over 1 mm.

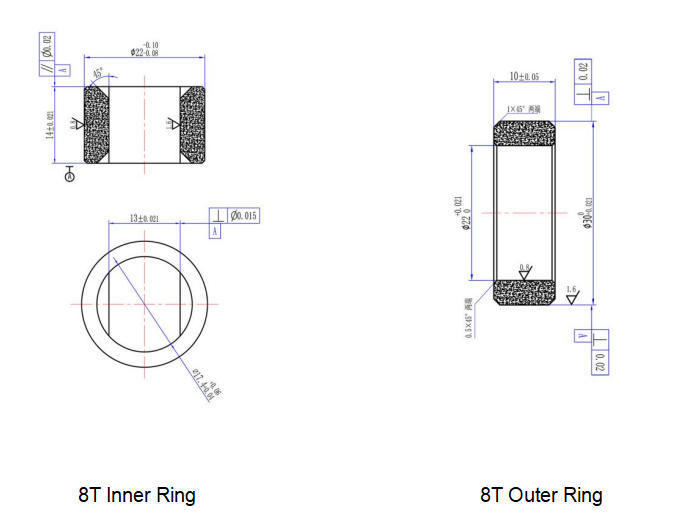

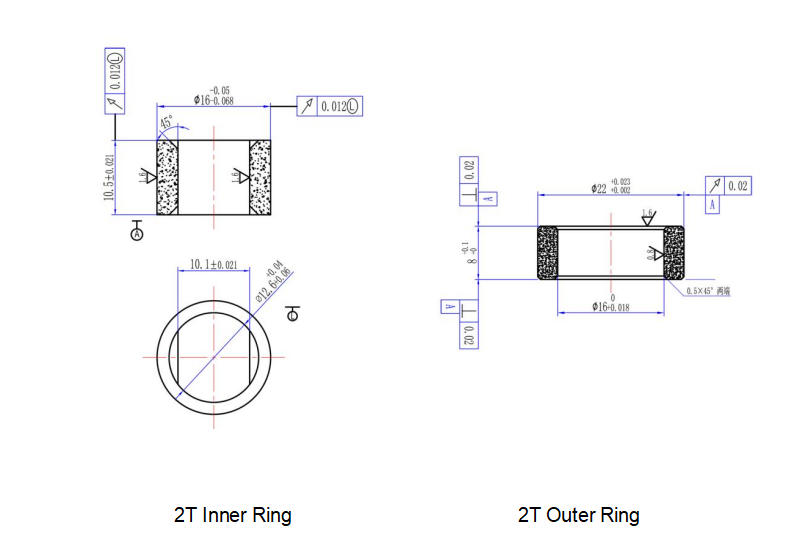

  • Drawing of 2T 8T Inner & Outer Ring Bushing Set for Vertical Multistage Pumps

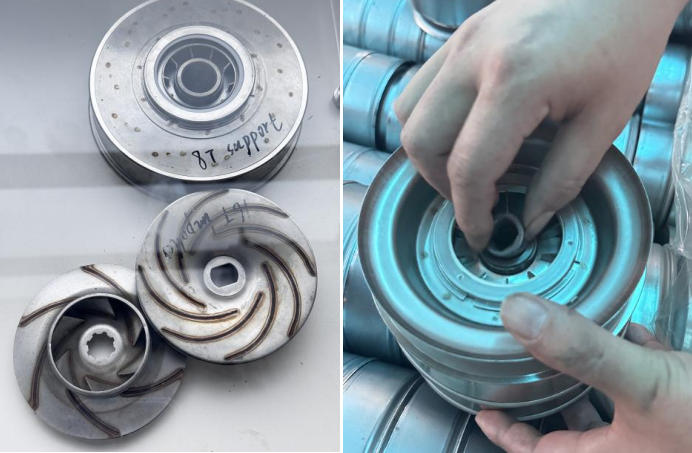

  • Application Scenarios of 2T 8T Inner & Outer Ring Bushing Set for Vertical Multistage Pumps
