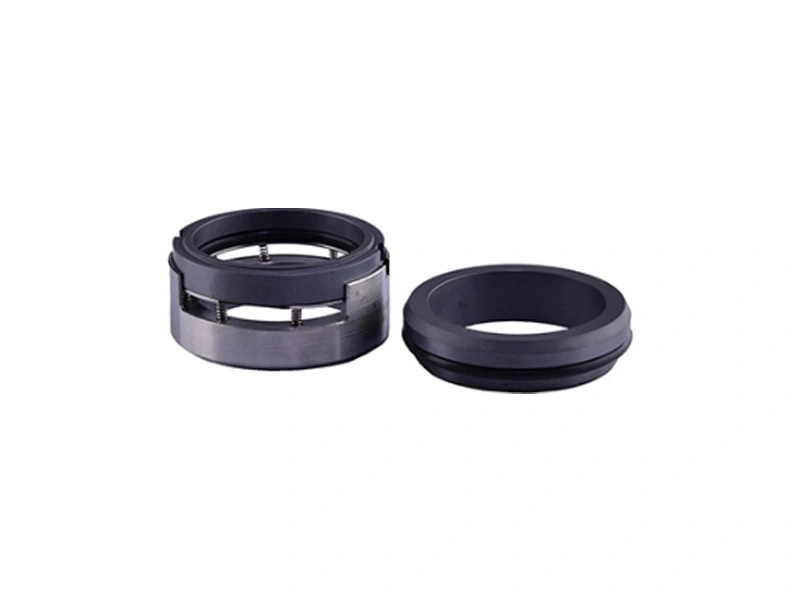

ZQM7N Wave Spring Mechanical Seal

Application Scopes

Medium: oil, water, non-crystalline acid, alkali, salt, organic solvent, etc

Temperature: -50 ~ 220°C

Pressure: ＜1MPa

Linear velocity: ＜15 m/s

Shaft diameter: φ14 ~ φ200 mm

Viscocity: ≤300 CP


The ZQM7N wave spring mechanical seals provide reliable sealing solutions, ensuring minimal leakage and enhanced durability. Engineered with precision, our wave spring mechanical seals effectively handle high-pressure environments, making them ideal for demanding industrial settings. Choose the ZQM7N wave spring mechanical seals for superior efficiency and long-lasting reliability in your operations!

Get A Quote
Category: General Seals
Products
Structure Features Diagram

  • Structure Features of ZQM7N Wave Spring Mechanical Seal

    1. The configuration comprises a wave spring, sleeve drive, and a single-end face seal. Its operational efficacy is independent of the rotational direction. The spring seat, spring, and push ring can be pre-assembled as a singular unit, facilitating installation.

    2. Apart from a segment of the axial working length (L3), the entire structure of these general seals adheres to the DIN24960 standard, ensuring its remarkable adaptability.

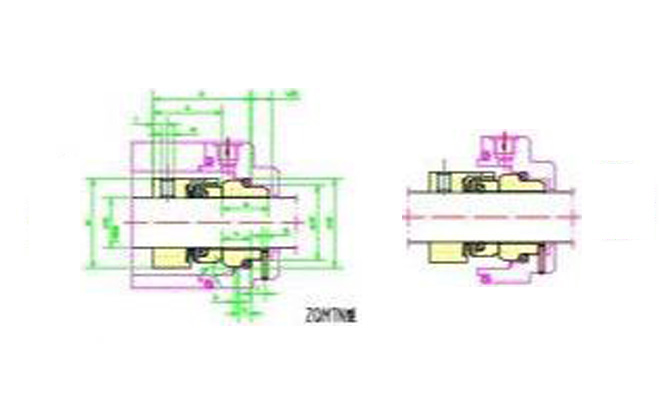

  • Diagram of ZQM7N Wave Spring Mechanical Seal

    Diagram of ZQM7N General Seals
