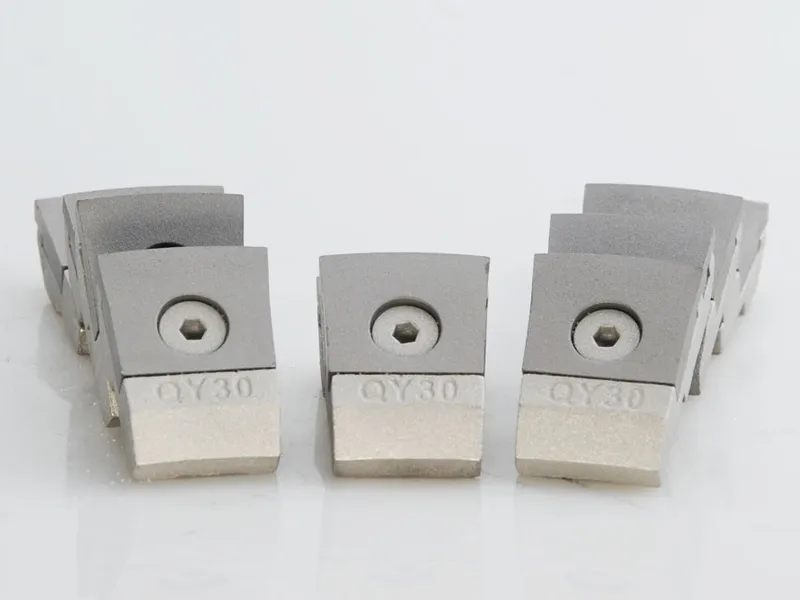

wear resistant blades for decanter centrifuges 1

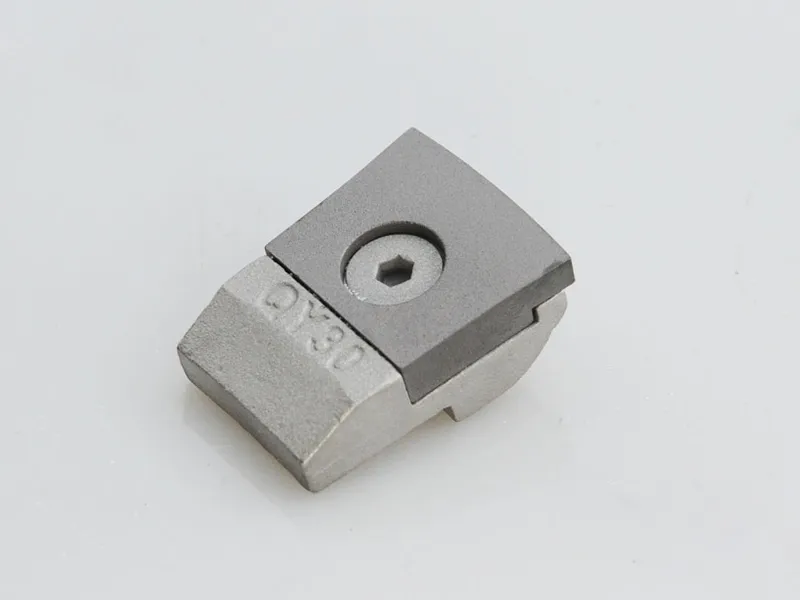

wear resistant blades for decanter centrifuges 2

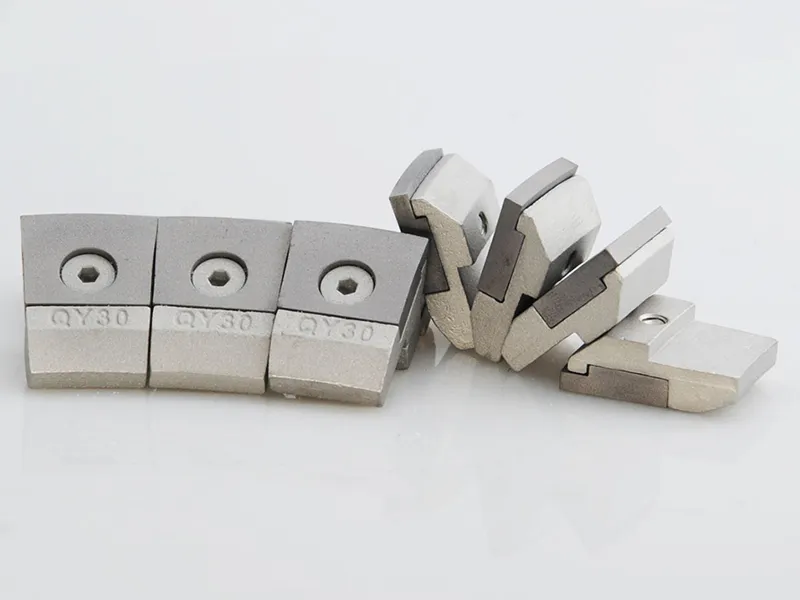

wear resistant blades for decanter centrifuges 3

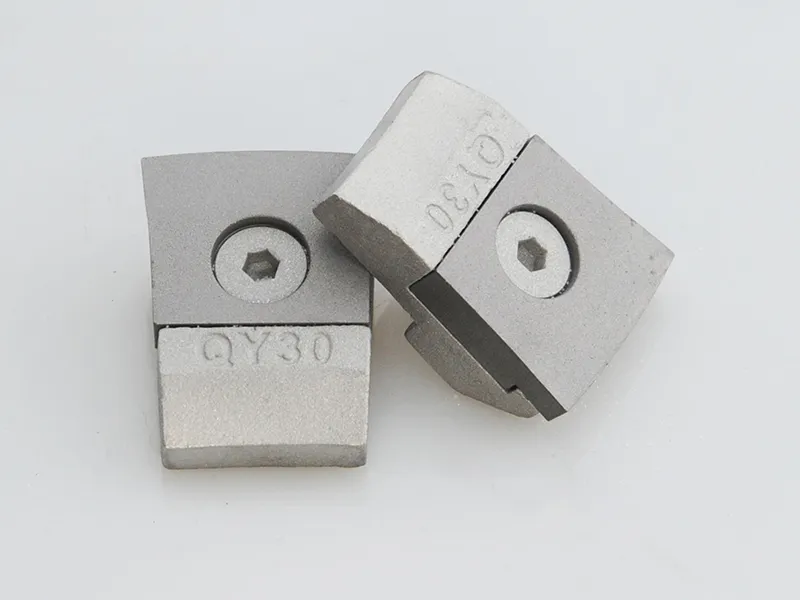

wear resistant blades for decanter centrifuges 4
wear resistant blades for decanter centrifuges 5

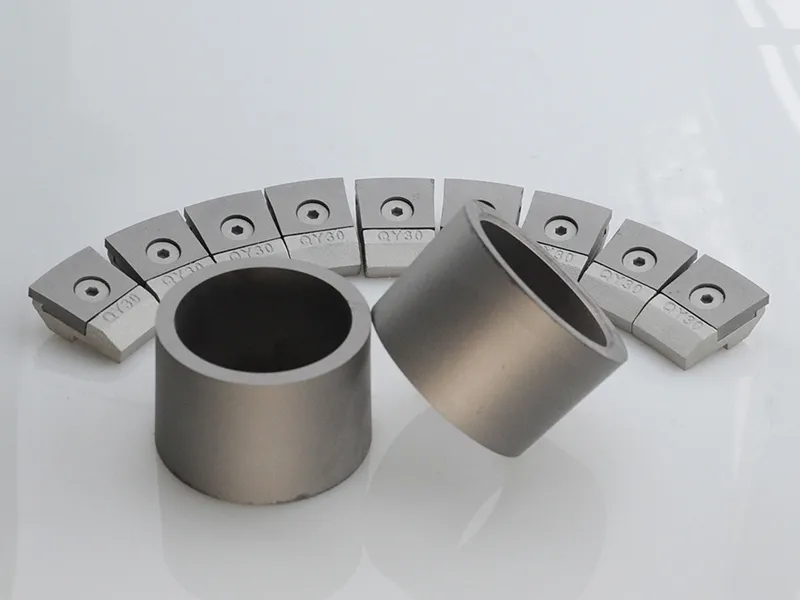

wear resistant blades for decanter centrifuges 6
wear resistant blades for decanter centrifuges 1
wear resistant blades for decanter centrifuges 2
wear resistant blades for decanter centrifuges 3
wear resistant blades for decanter centrifuges 4
wear resistant blades for decanter centrifuges 5
wear resistant blades for decanter centrifuges 6

Wear-resistant Blades for Decanter Centrifuges

Titanium-based cermet is a composite material sintered from ceramic hard phases and metal binder phases via powder metallurgy technology. It not only possesses the characteristics of ceramic materials, such as high hardness, high wear resistance, corrosion resistance, high-temperature resistance and oxidation resistance, but also retains the favorable toughness of metal materials as well as good physical electrical and thermal conductivity. Meanwhile, its density is less than half of that of tungsten steel, endowing it with advantages in cost reduction and energy conservation.


Get A Quote
Category: Ti-Based Cermet Product
Products
Characteristics

  • Characteristics of Wear-resistant Blades for Decanter Centrifuges

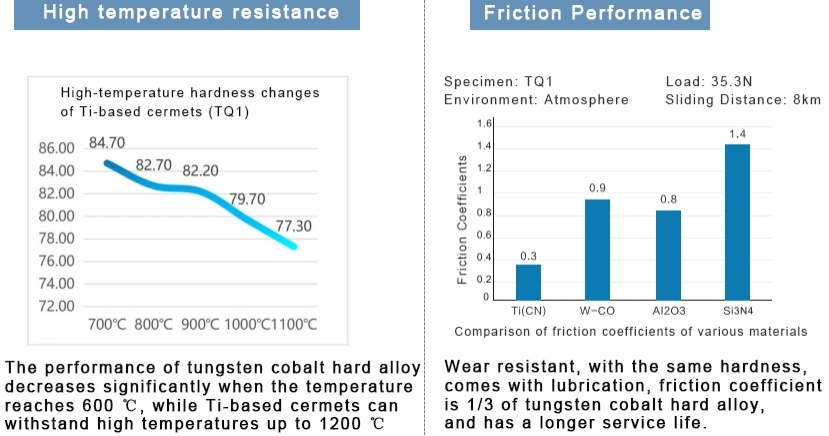

    Performance Comparison


    Unit

    Alumina


    Zirconia


    Silicon carbide

    Silicon nitride

    Tungsten carbide

    Titanium based metal ceramics

    Density

    g/cm³

    3.7-3.9

    5.35-6.0

    2.65-3.15

    2.4-2.5

    13.5-15

    6.2-7.9

    Hardness

    HRA

    85-93

    85-91

    87-95

    89-95

    93Max

    86-95

    Bending Strength

    Mpa

    280-360

    900-1150

    150-550

    165-200

    1500-3200

    1200-3000


    Low density: The density is only about 50% of tungsten cobalt hard alloy, and the quantity of products per unit weight is twice that of tungsten cobalt hard alloy.


    High strength: The bending strength is comparable to tungsten carbide.


    Energy saving: The weight of products with the same quantity is significantly reduced, which lowers the energy consumption of equipment operation.

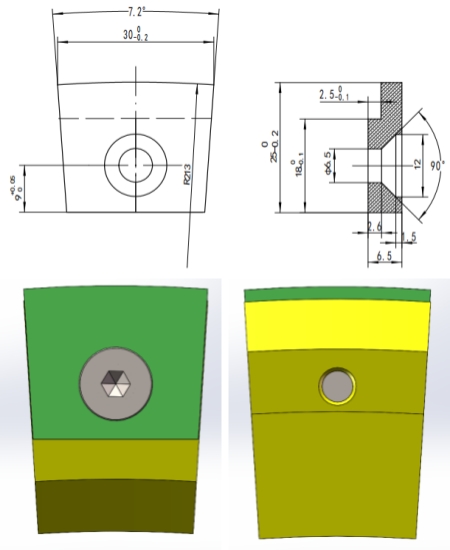

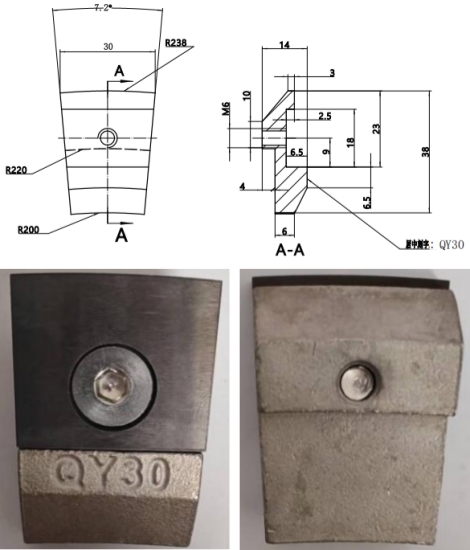

    QY30 Drawing

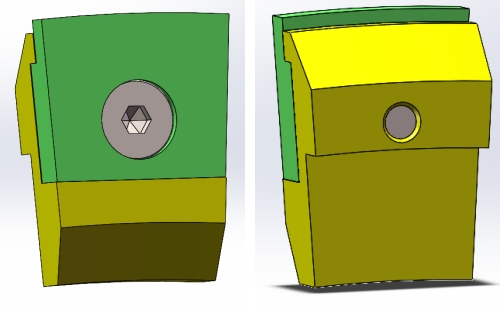

    QY30 wear-resistant blade adopts 316L base and titanium base ceramic blade, fixed by screws. The drawings and size data are as follows.


    Base:                                                             Wear-resistant blade:

    base.jpg   wear-resistant-blade.jpg
