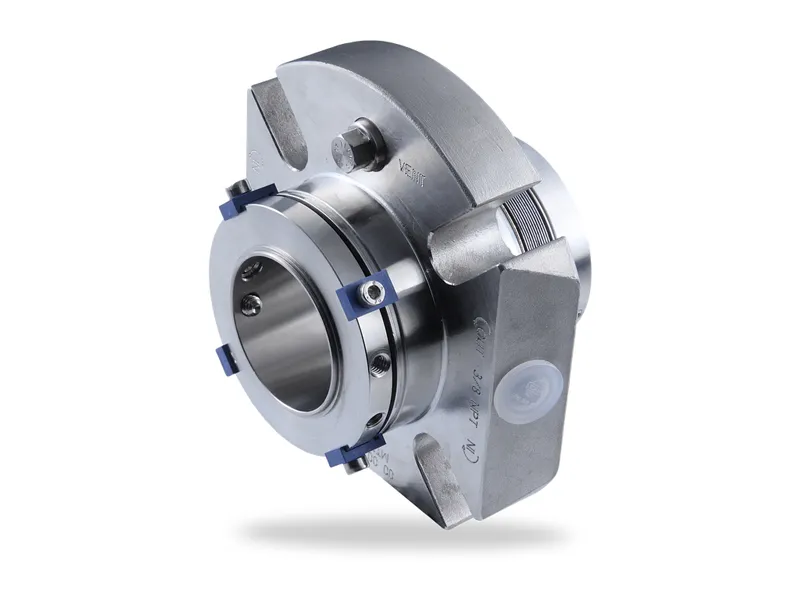

Mtex DN Dual Cartridge Seals for Pumps

Working conditions

Shaft Diameter: 25-80 mm

Temperature: -40 °C-220℃

Pressure: ≤2.5 Mpa

Linear Velocity: ≤20 m/s


Get A Quote
Category: Mechanical Seals For Pumps
Products
Structure Features Diagram Applications

  • Structure Features of Mtex DN Dual Cartridge Seals for Pumps

    The Mtex DN mechanical seal is a double cartridge seal with metal bellows and stationary o-rings. This mechanical seal features a balanced design, and it is independent of the direction of rotation.



    • Ideal seal for standardizations

    • Universal applicable for packings conversions, retrofits or OEM

    • No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height

    • Trouble-free running due to bellows unit with vibration dampers (essential in case of dry-running)

    • No damage of the shaft by dynamically loaded O-Ring

    • Self cleaning effect of the bellows

    • Straightforward and easy installation due to pre-assembled unit

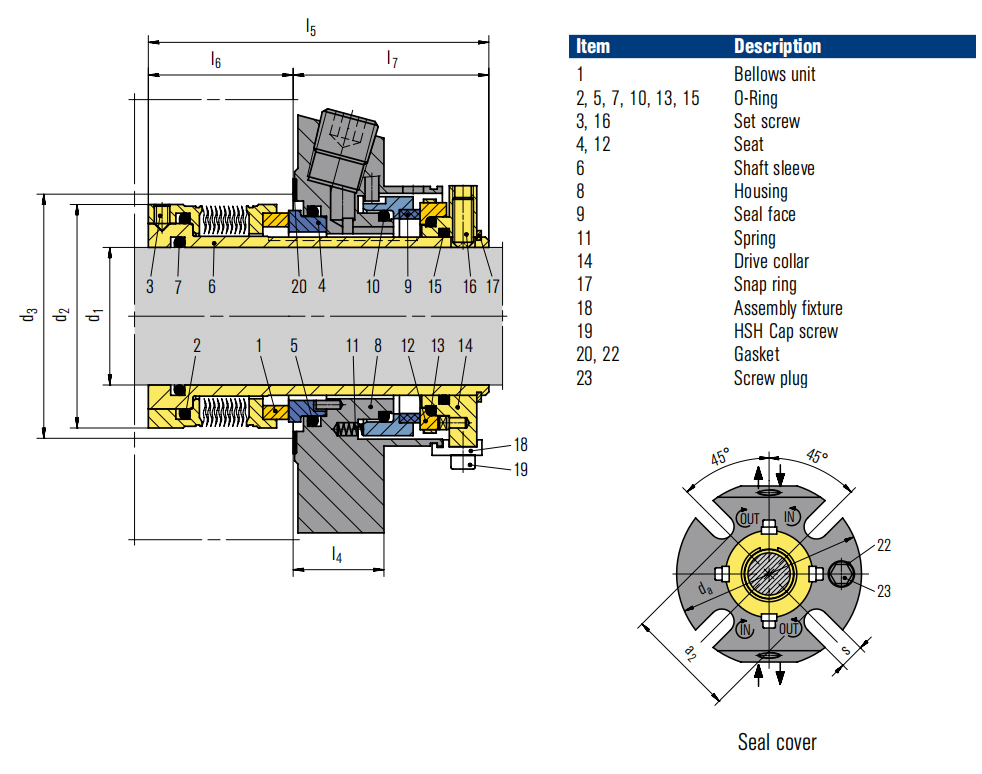

  • Diagram of Mtex DN Dual Cartridge Seals for Pumps


  • Applications of Mtex DN Dual Cartridge Seals for Pumps

    The Mtex DN mechanical seal is suitable for applications in the process and chemical industries, handling hot, cold, and highly viscous media. The Mtex dual cartridge seal is commonly used in pumps and other special rotating equipment.
