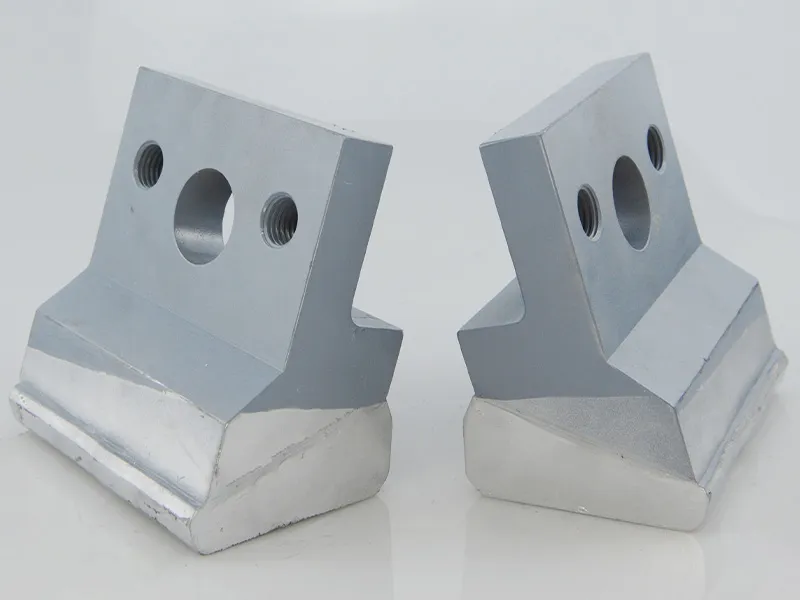

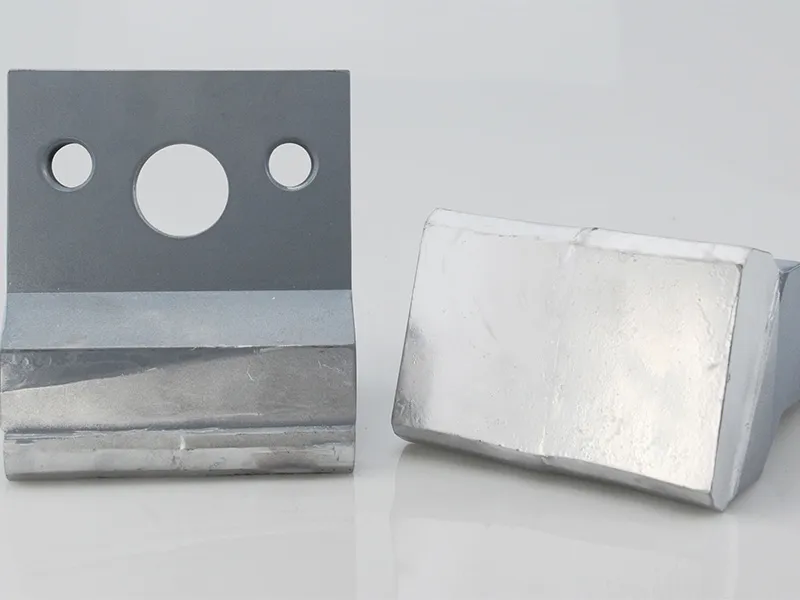

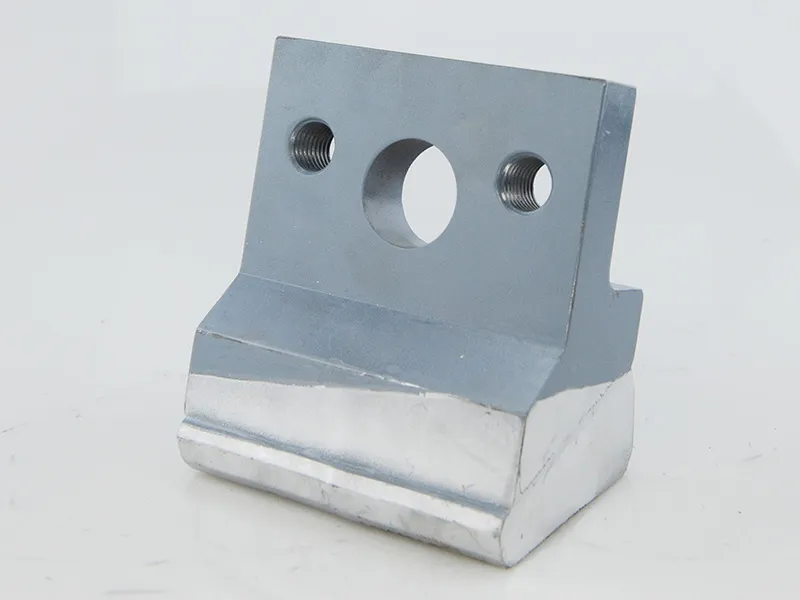

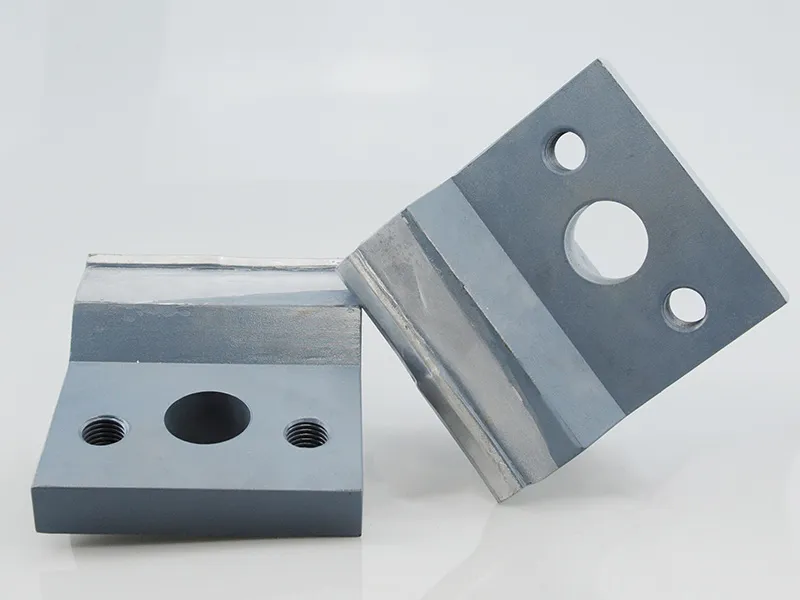

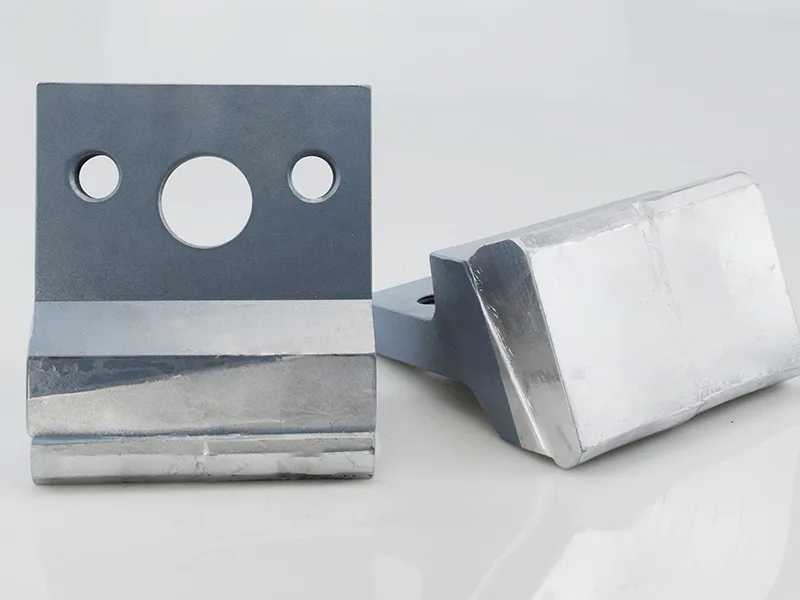

Material Throwing Head

Zhaoqiang Taici TG1 Grade Titanium-based Ceramic, with a hardness of over 90 HRA, replaces traditional wear-resistant strips made of hard alloy for mining applications. It exhibits excellent wear resistance: its density is less than half that of hard alloy, while its wear resistance is superior to that of traditional hard alloy.


Get A Quote
Category: Ti-Based Cermet Product
Products
Characteristics

  • Characteristics of Material Throwing Head

    Typical values of performance of random surface spline

    Grade

    Bending strength (MPa)

    Hardness

    （HRA）

    Fracture Toughness (MPa·m^(1/2))

    Impact  Toughness(J/cm 2)

    Density

    (g/cm³)

    Applicable temperature   (℃)

    TG1

    1400~16

    00

    92~93

    10

    2~3

    5.3~5.5

    1200

    TG2

    1500~17

    00

    88~90

    18

    3~5

    5.4~5.6

    1200

    TG3

    2100~26

    00

    84.5~86.5

    19.5~25.5

    6.5~9.5

    6.4~6.55

    1100

    TG4

    2800~31

    00

    82.5~83.5

    >25

    17~20

    6.8~7.0

    1000


    Typical values of product sampling performance

    Product

    Bending strength (MPa)

    Hardness（HRA）

    Fracture

    toughness(MPa·m1/2)

    Impact

    resistance   (J/cm 2)

    Density

    (g/cm³)

    Material throwing head - sand making machine accessory



    1700~1900



    88~90



    >10



    3~4



    5.4



    Key Performance Features:

    Wear-resistant

    High-temperature resistant

    Medium compressive performance

    Medium-high strength
