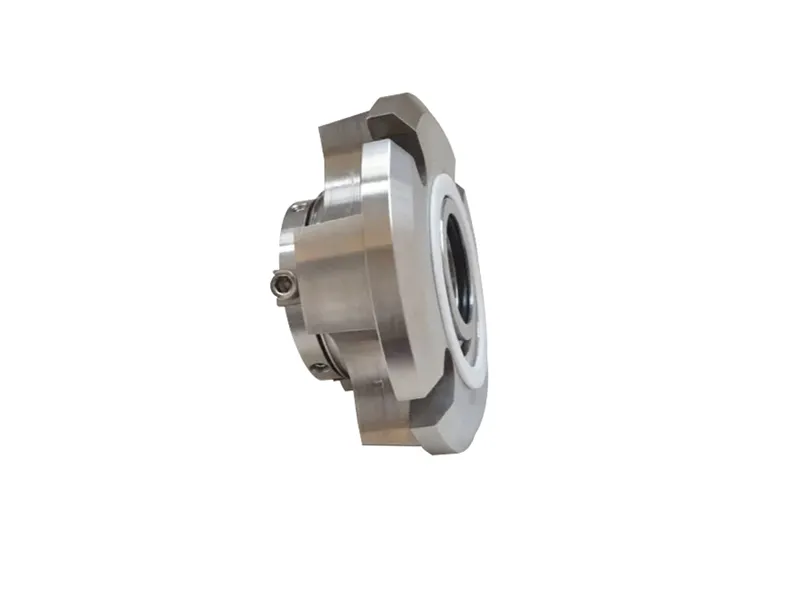

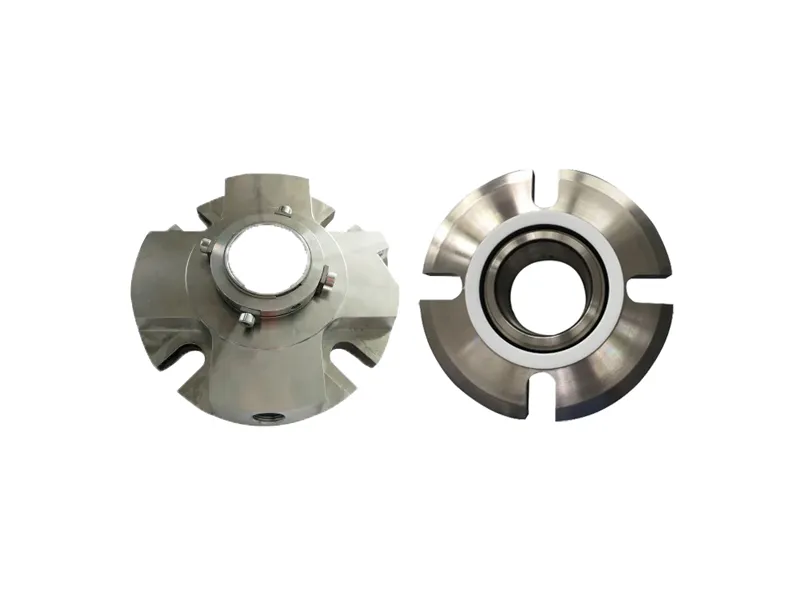

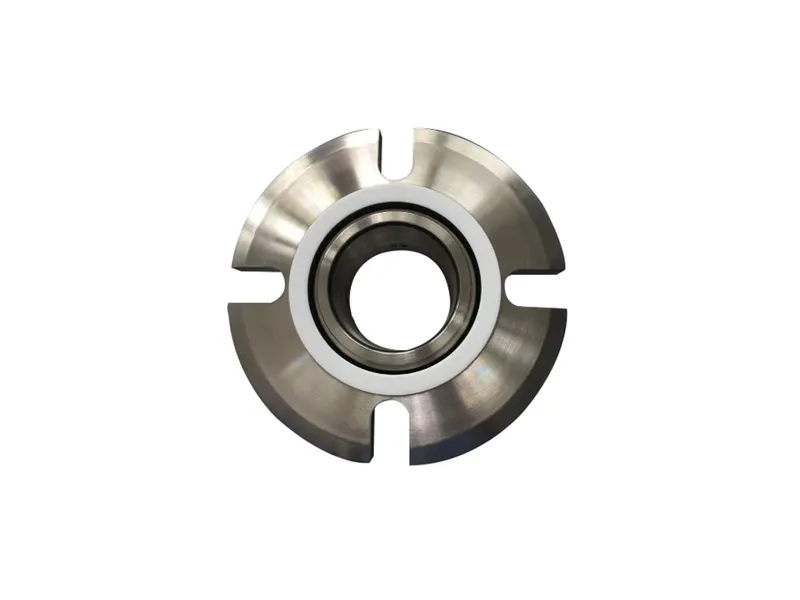

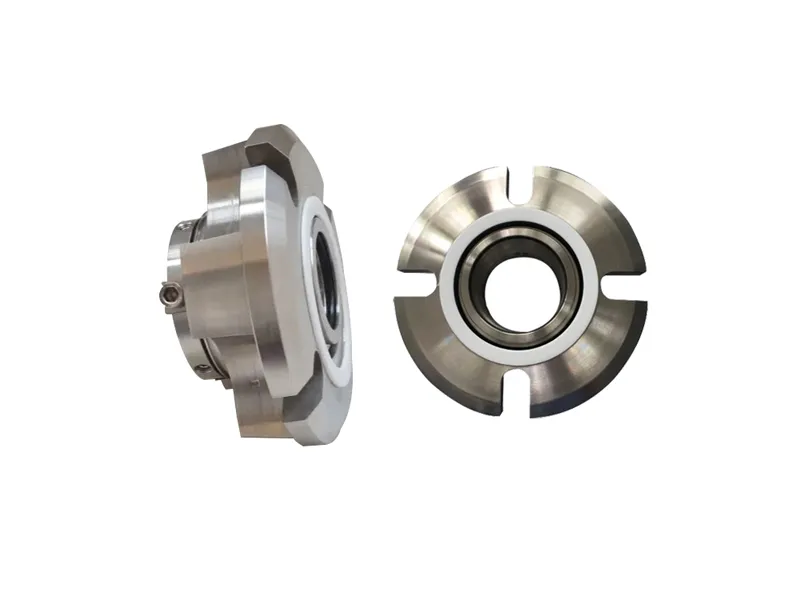

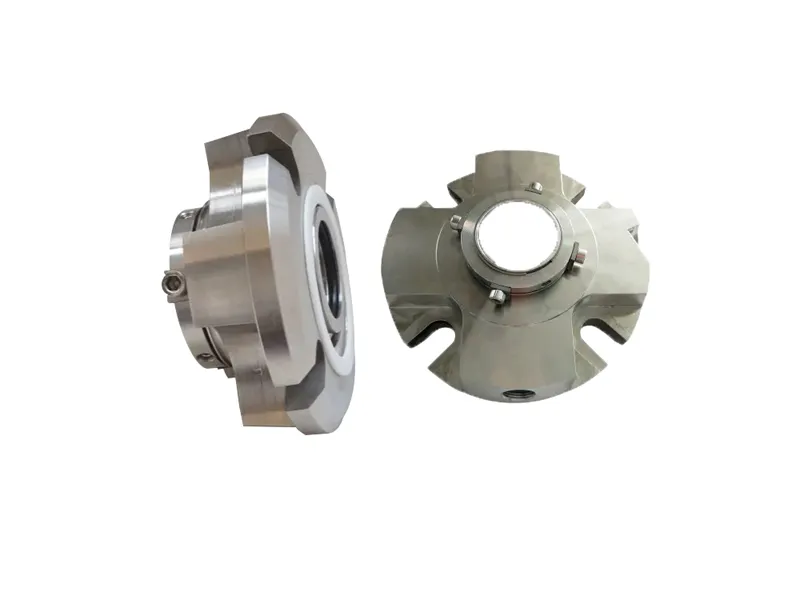

Type 5610 Cartridge Single Mechanical Seal for Pumps

Working conditions

Shaft Diameter: 24-140mm (1″-5.5″)

Temperature: -30 °C-205℃

Pressure: ≤21bar

Linear Velocity: ≤25 m/s


Get A Quote
Category: Mechanical Seals For Pumps
Products
Structure Features Diagram Applications

  • Structure Features of Type 5610 Cartridge Single Mechanical Seal for Pumps

    Type 5610 Seal is a single cartridge O-ring pusher seal. It's a universal cartridge seal. With interchangeable components across the Type 5600 Series, this seal family can be standardized throughout your entire plant. This approach enables broader application coverage with reduced inventory, streamlining maintenance, shortening downtime, improving operational efficiency, and lowering overall costs.

    •  Utilizes an elastomer O-ring as the secondary seal.

    • Features a common, reversible seal head/mating ring assembly across all models, enabling operation with either a rotating seat or rotating seal head, and is interchangeable with metal bellows seal heads.

    • Compatible with ANSI, ISO, and DIN standard seal chambers.

    • Optimized primary ring design for greater reliability.

    • Non-clogging wave spring outside the product.

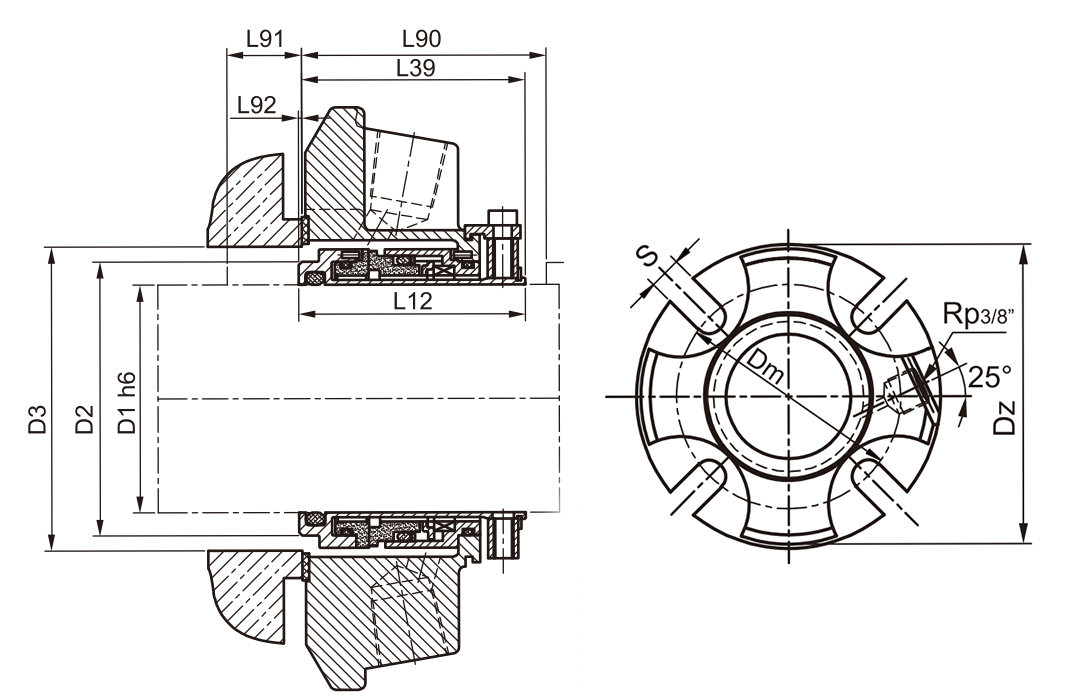

  • Diagram of Type 5610 Cartridge Single Mechanical Seal for Pumps


  • Applications of Type 5610 Cartridge Single Mechanical Seal for Pumps

    The type 5610 cartridge single mechanical seal finds its primary application in sealing process pumps and extends to a broad range of other rotating equipment, mixers and agitators. This single cartridge seal is fully compliant with NSF-61 standards for clean drinking water services.
