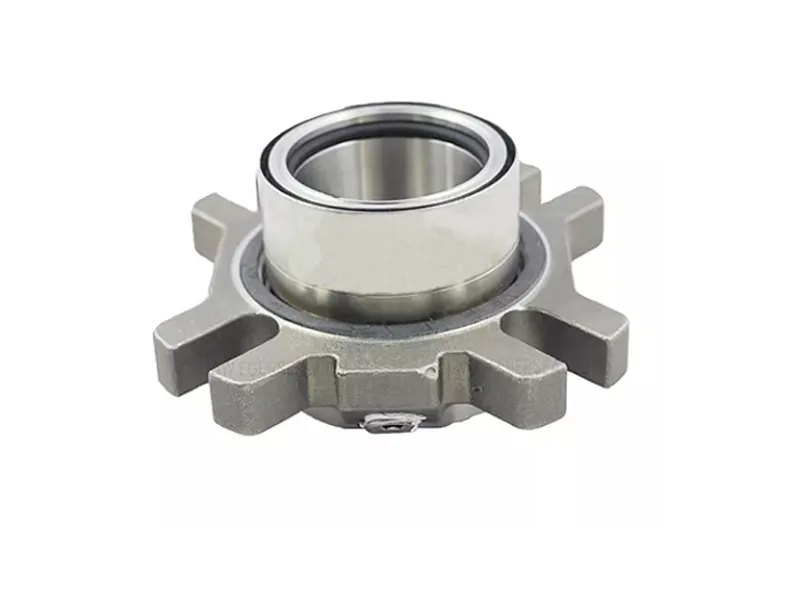

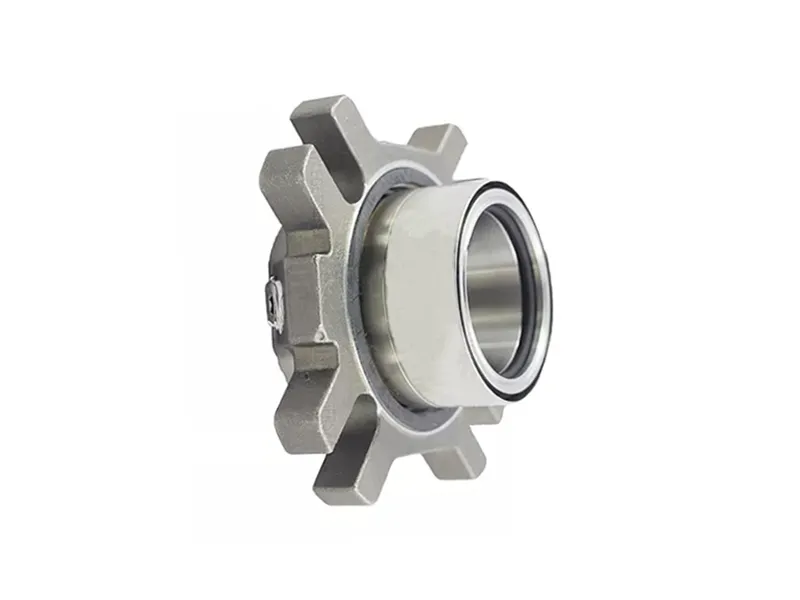

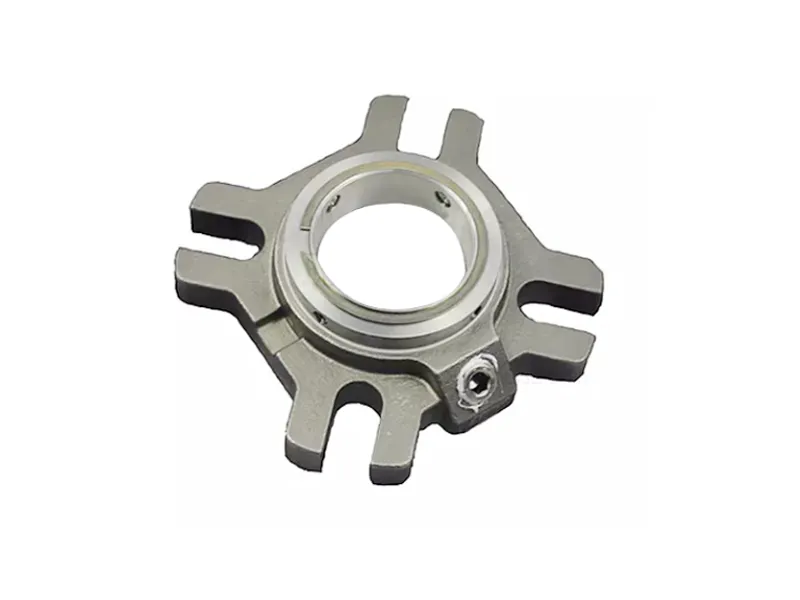

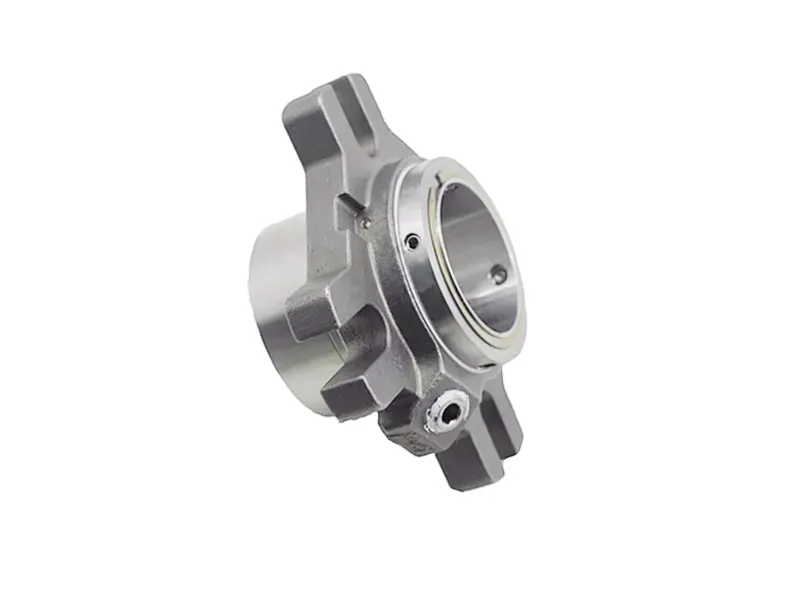

Type 4610 Single Cartridge Mechanical Seal for Pumps

Working conditions

Shaft Diameter: 24-70mm

Temperature: -20 °C-205℃

Pressure: ≤21bar

Linear Velocity: ≤15 m/s

Get A Quote
Category: Mechanical Seals For Pumps
Products
Structure Features Diagram Applications

  • Structure Features of Type 4610 Single Cartridge Mechanical Seal for Pumps

    The Type 4610 single cartridge seal combines affordability with fluid-sealing dependability. It's the complete solution for sealing satisfaction in general industrial applications.



    • Compact cartridge design

    • Hydraulically balanced for optimal performance.

    • Non-clogging, crest-to-crest wave spring

    • Less prone to corrosion problems

    • Uniform face loading

    • Unique centralizing ring eliminates setting clips and prevents component damage from over-compression during seal fitting.

    • Four-bolt gland accurately sets the seal axially and radially.

    • Factory-preset and pressure-tested assembly.

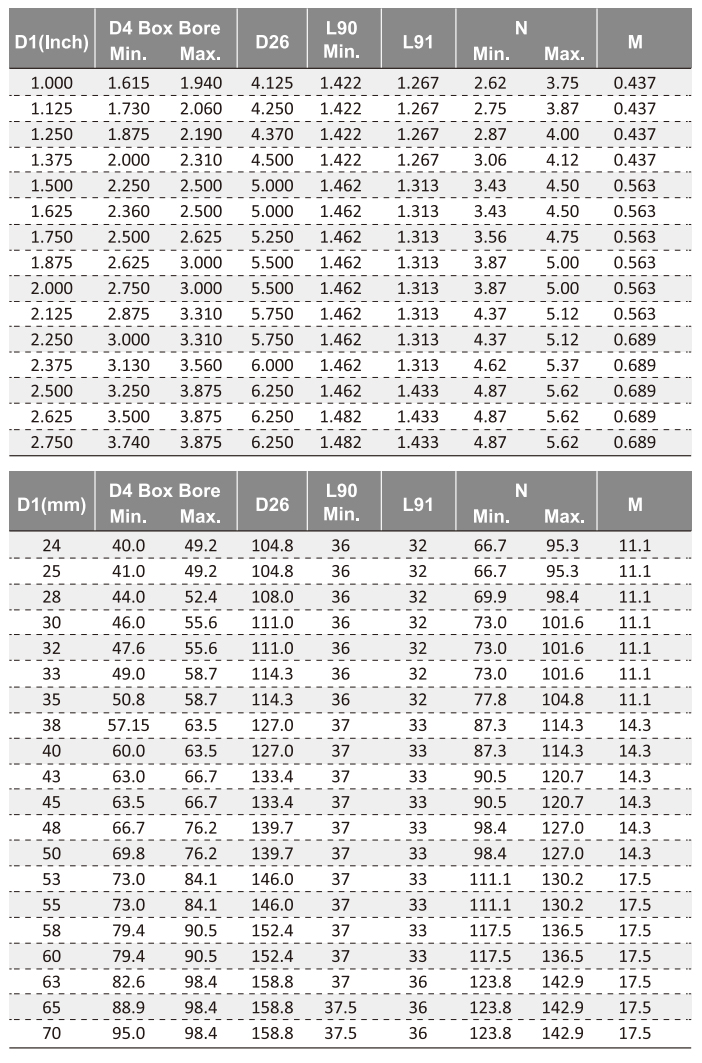

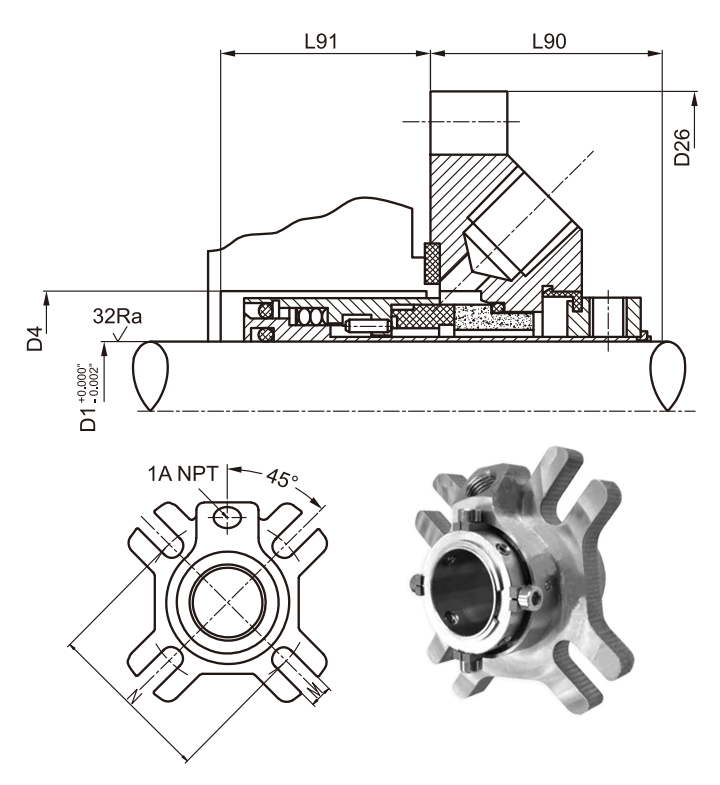

  • Diagram of Type 4610 Single Cartridge Mechanical Seal for Pumps


  • Applications of Type 4610 Single Cartridge Mechanical Seal for Pumps

    Type 4610 single cartridge mechanical seal meets key industry pump standards and is designed to permit use in rotating shaft equipment, including ANSI/DIN pumps, close-coupled pumps, vertical pumps. It can also be used for process pumps, mixer and agitators. This single cartridge seal is fully compliant with NSF-61 standards for clean drinking water services.
