M461 Mechanical Cartridge Seal for Agitator

Working conditions

Shaft diameter: 40 … 160 mm

Pressure: vacuum … 16 bar

Temperature: –40 °C … +200 (250*) °C

Linear Velocity: ≤5 m/s


Get A Quote
Category: Mechanical Seal For Agitator
Products
Features Diagram Advantages Applications

  • Features of M461 Mechanical Cartridge Seal for Agitator

    Type M461 is an unbalanced agitator cartridge seal. Either double seal or single seal is available on request. It operates independently of the direction of rotation. This mechanical seal incorporates multiple rotating springs and is liquid-lubricated for enhanced performance. M461 mechanical cartridge seal is suitable for top entry drives and glass-lined vessels.

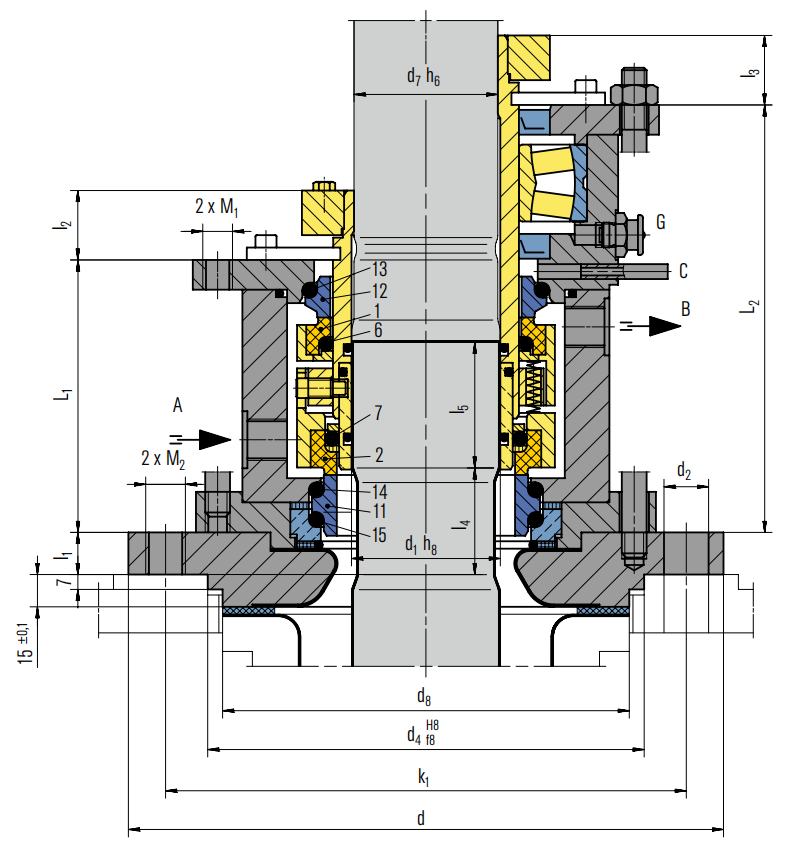

  • Diagram of M461 Mechanical Cartridge Seal for Agitator



  • Advantages of M461 Mechanical Cartridge Seal for Agitator

    • Ready-to-fit and factory-tested unit

    • Available with or without bearing

    • Suitable for standardizations

    • Double seals can be applied at higher pressure and rotating speed than specified by DIN

    • Self-closing on product side

    • The seal can be lifted off the glass-lined flange as a complete cartridge

    • The glass lined basic flange remains mounted on the vessel.


  • Applications of M461 Mechanical Cartridge Seal for Agitator

    The M461 mechanical seal is widely used in petrochemicals, chemicals, pharmaceuticals, and food and beverage industries. This cartridge mechanical seal is particularly well-suited for critical equipment such as agitators and reactors, where reliable performance under challenging conditions is essential.
