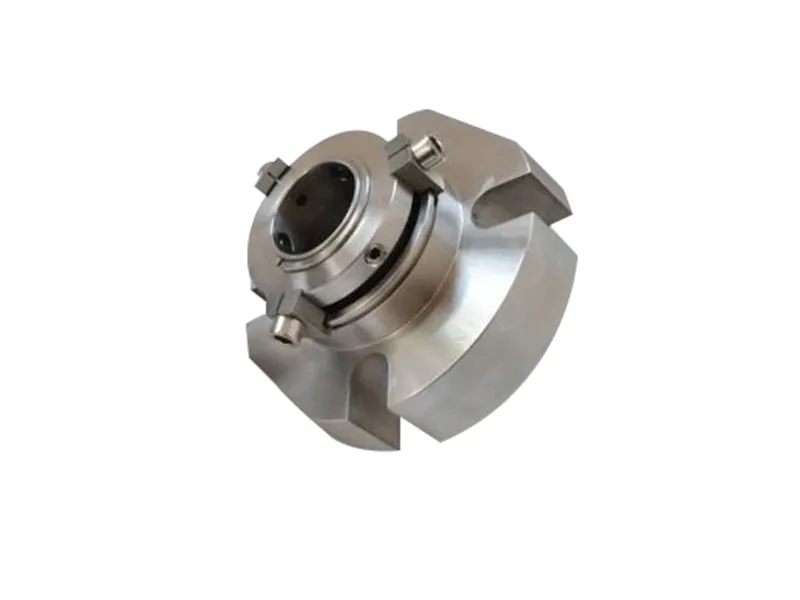

cartex dn dual cartridge seal for pumps 2

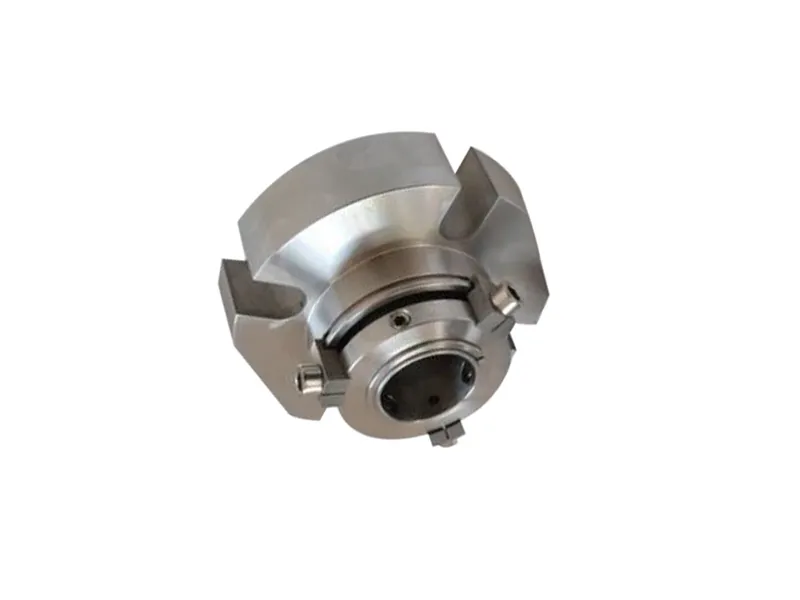

cartex dn dual cartridge seal for pumps 3

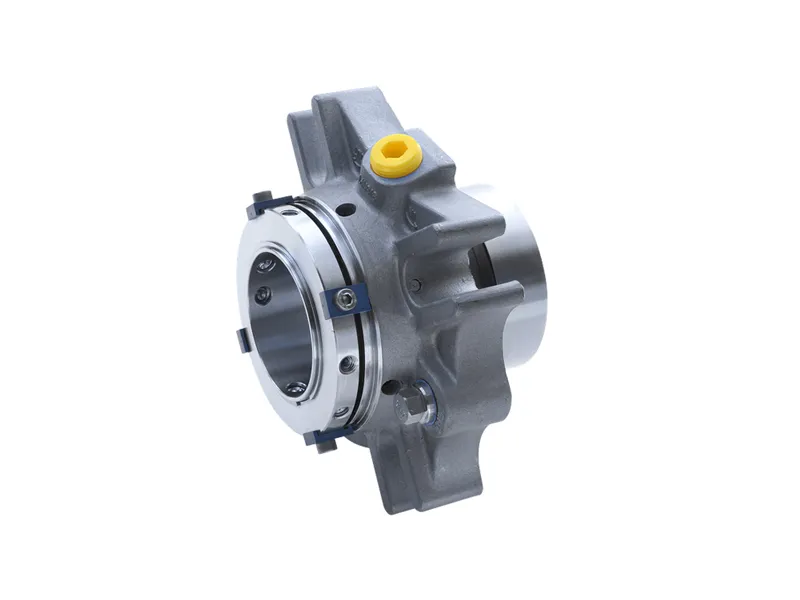

cartex dn dual cartridge seal for pumps 4
cartex dn dual cartridge seal for pumps 2
cartex dn dual cartridge seal for pumps 3
cartex dn dual cartridge seal for pumps 4

Cartex DN Dual Cartridge Seal for Pumps

Working conditions

Shaft Diameter: 25-100 mm (1.000"-4.000")

Temperature: -40 °C-220℃

Pressure: ≤2.5 Mpa

Linear Velocity: ≤16 m/s


Get A Quote
Category: Mechanical Seals For Pumps
Products
Structure Features Diagram Applications

  • Structure Features of Cartex DN Dual Cartridge Seal for Pumps

    The Cartex DN mechanical seal is a double cartridge seal featuring a balanced design that is independent of the direction of rotation.

    • Ideal seal for standardizations

    • Universal applicable for packings conversions, retrofits or original equipment

    • No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height

    • No damage of the shaft by dynamically loaded O-Ring

    • Extended service life

    • Straightforward and easy installation due to pre-assembled unit (reduced down-times)

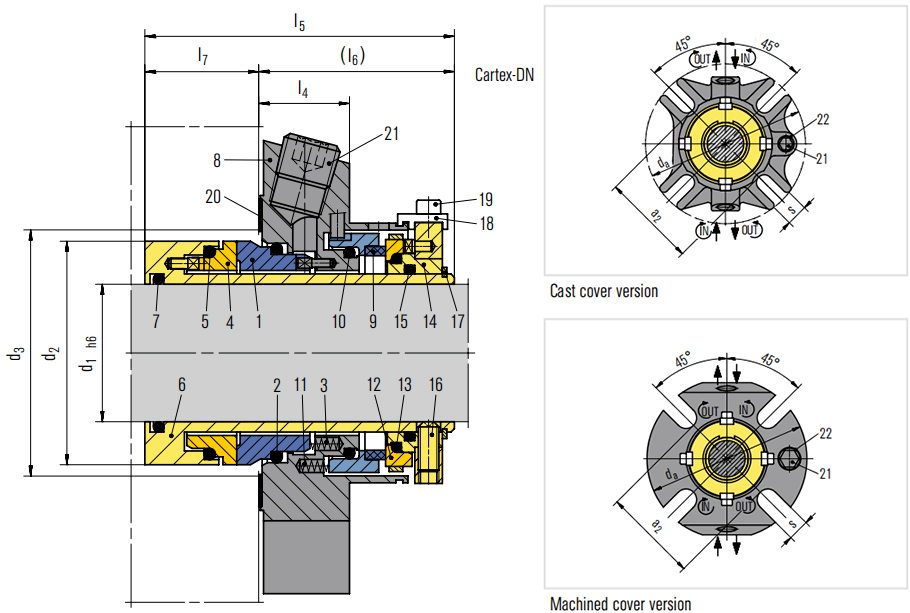

  • Diagram of Cartex DN Dual Cartridge Seal for Pumps


  • Applications of Cartex DN Dual Cartridge Seal for Pumps

    The Cartex DN cartridge mechanical seal is widely applicable across a broad spectrum of fields, including the petrochemical industry, chemical industry, pharmaceutical industry, power plant technology, pulp and paper industry, water and waste water technology, mining industry, food and beverage industry as well as the sugar industry. As a pump mechanical seal, it is suitable for various types of pumps such as centrifugal pumps, and eccentric screw pumps
